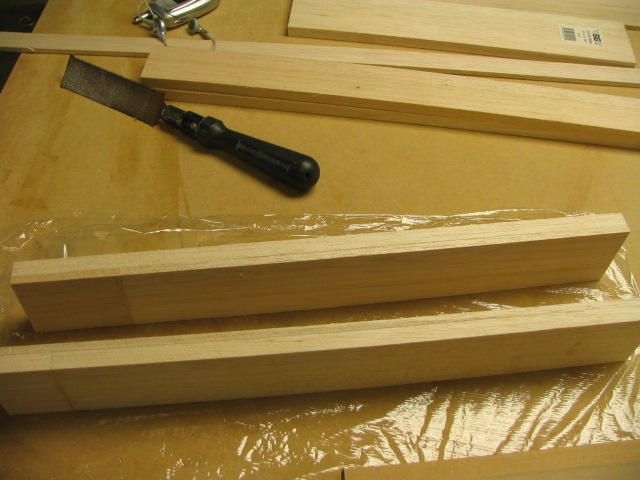

Glued balsa together to make a 3/4" piece to be used as the bevels on the rudder |
|

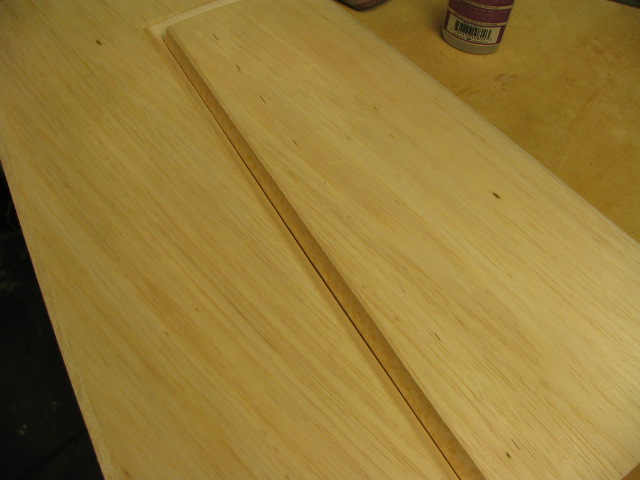

Elevators ready to be hinged |
|

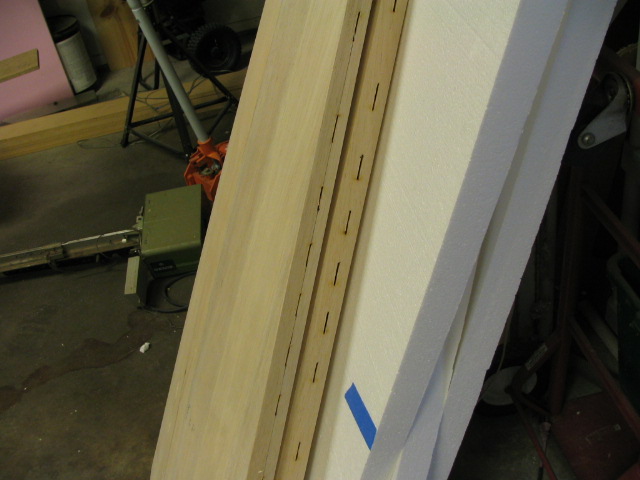

Ailerons slots cut with dremel and ready for hinges |
|

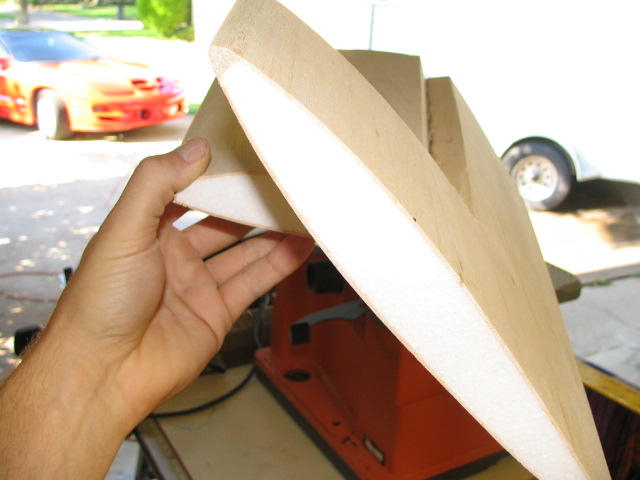

Wing slots (the wings are tilted which is why the slots aren't lining up if you are anal like me and were wondering about that) |
|
Hinges glued into aileron after my wire has been removed |
|

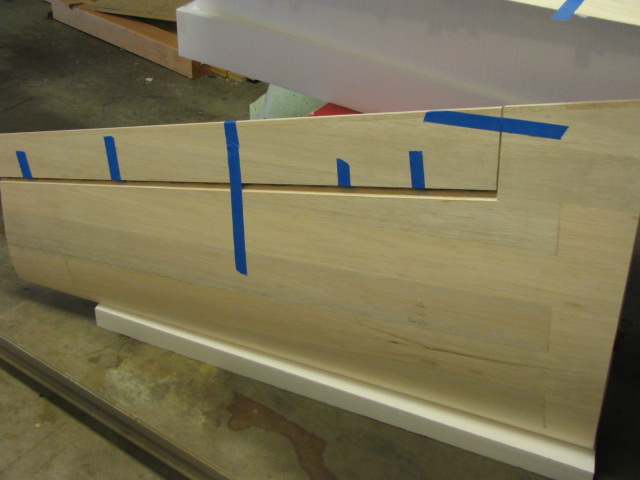

Ailerons gluing onto the wing |
|
Finished shot of the elevator hinging |
|

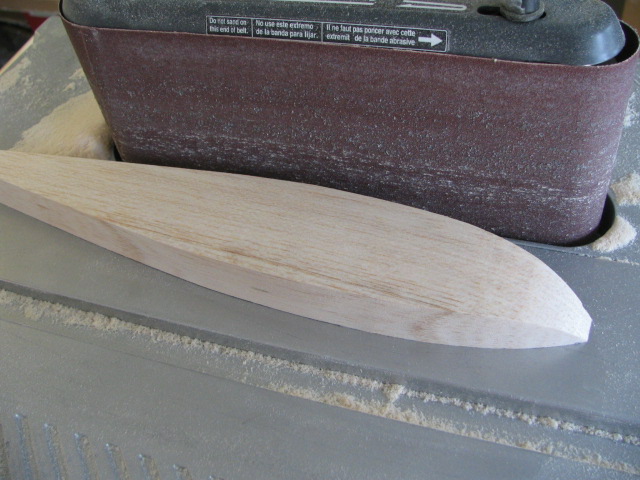

Shaping the endcaps for the wings |
|

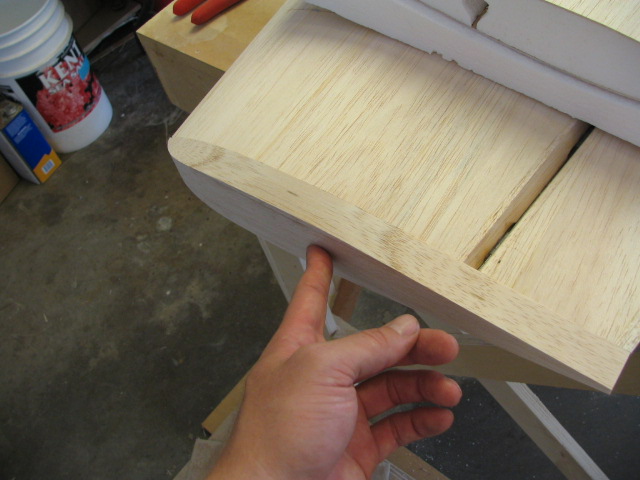

Test fitting to make sure I didn't sand them too small |
|

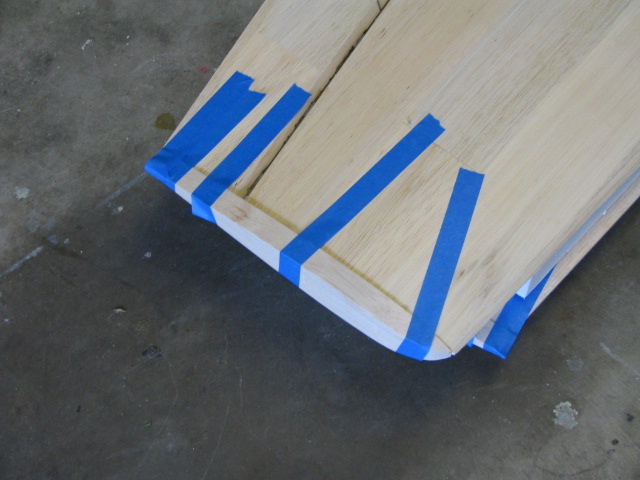

Gluing them to the tip |
|
