DAY 35 to 37
|
|

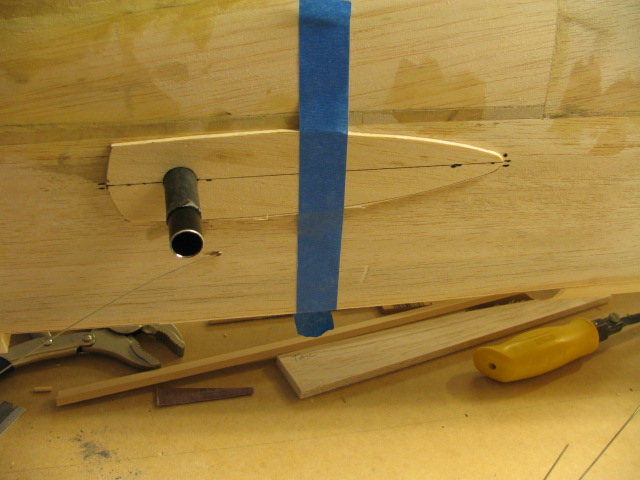

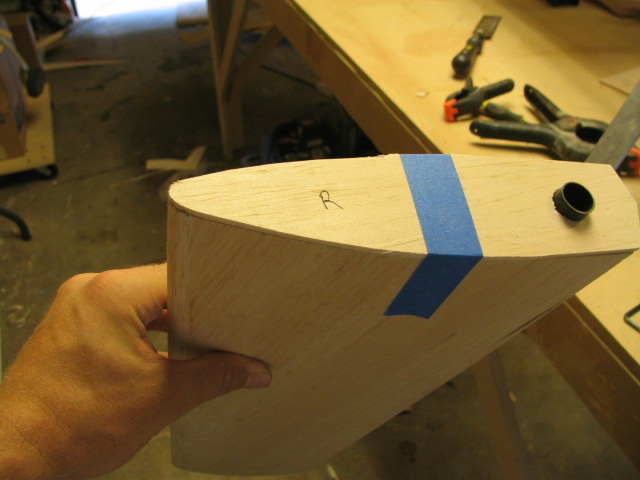

| Dry fitting my root rib | .jpg) |

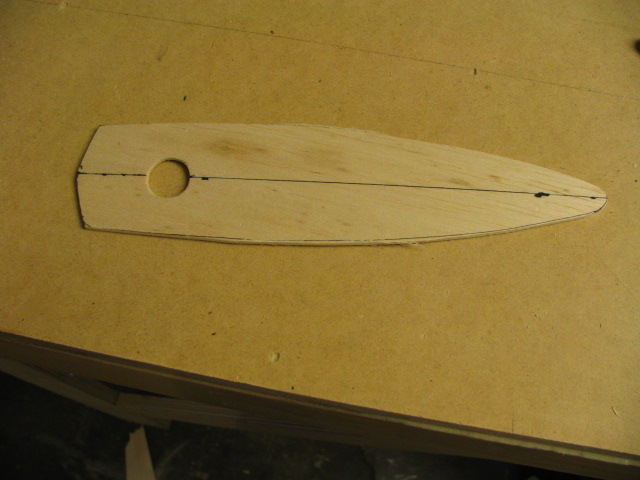

| Drawing a center line down the middle | .jpg) |
Have the center line parallel to the thrust line (measured from it and put marks on the fuse. I feel this is a more accurate way than using a laser level or anything that goes around our fat leading and trailing edges) I then drill the hole through the root rib and fuse at the same time to set the incidence. |
.jpg) |

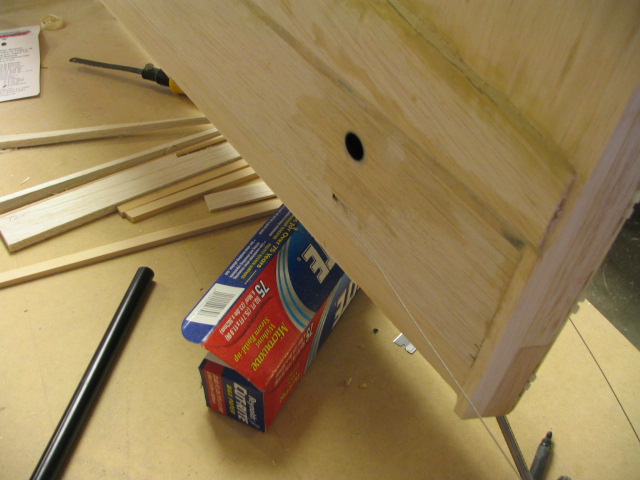

| Pull pull exit | .jpg) |

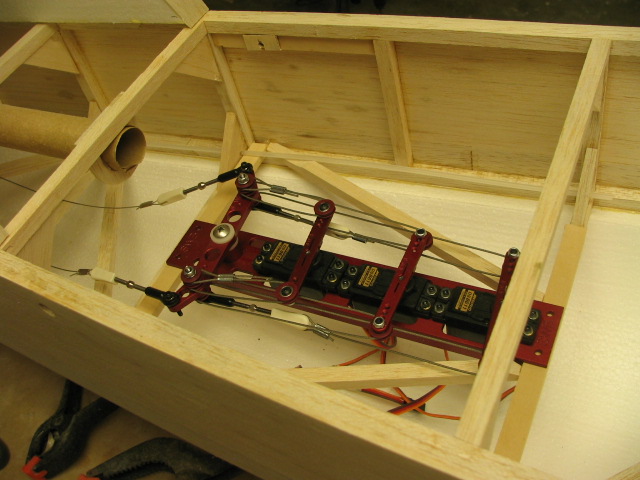

| Self correcting SWB tray | .jpg) |

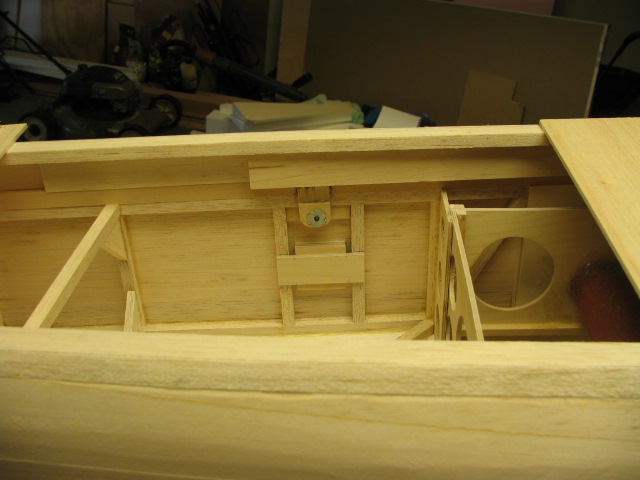

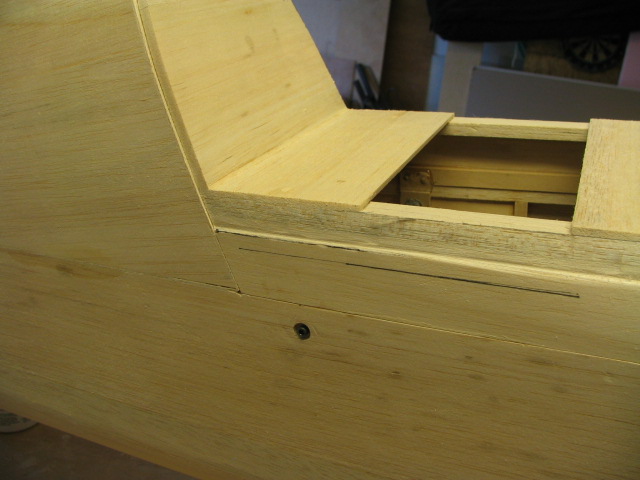

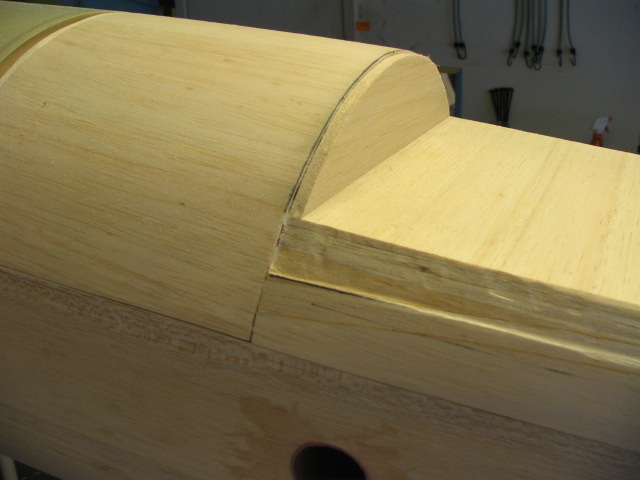

| Finishing up hatch |  |
.jpg) |
|
.jpg) |
|
.jpg) |
|
.jpg) |
|

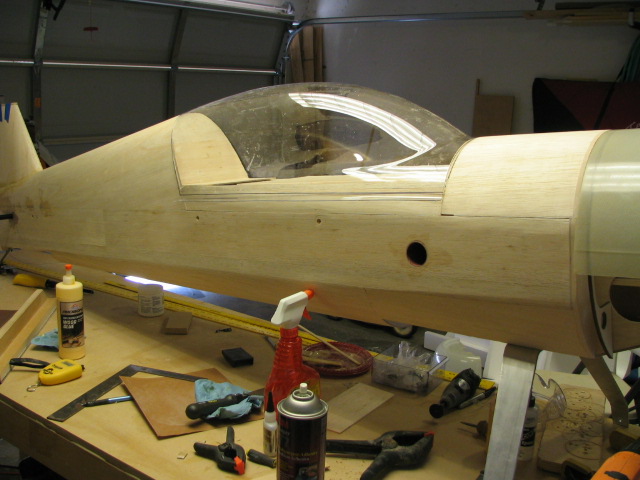

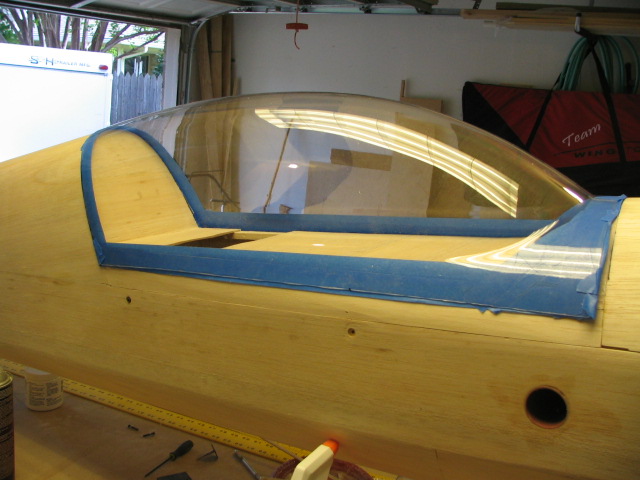

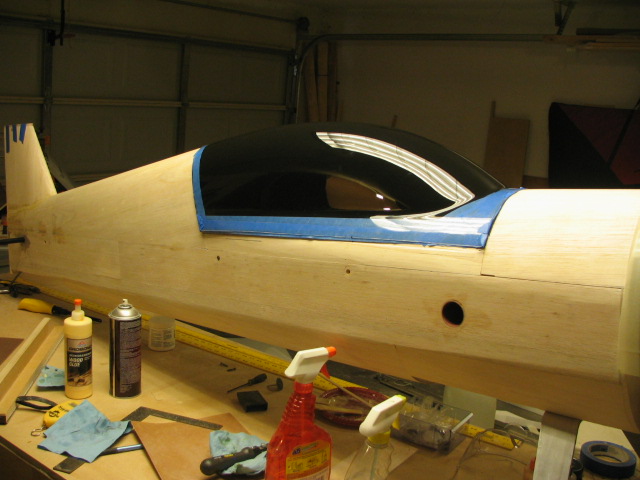

| Decided to go black on the canopy b/c I think it looks good and it is probably lighter too. Won't paint the inside of the cockpit which probably soaks up a lot of paint and won't have a pilot or instrument panel which aren't being scored in IMAC anymore. | .jpg) |

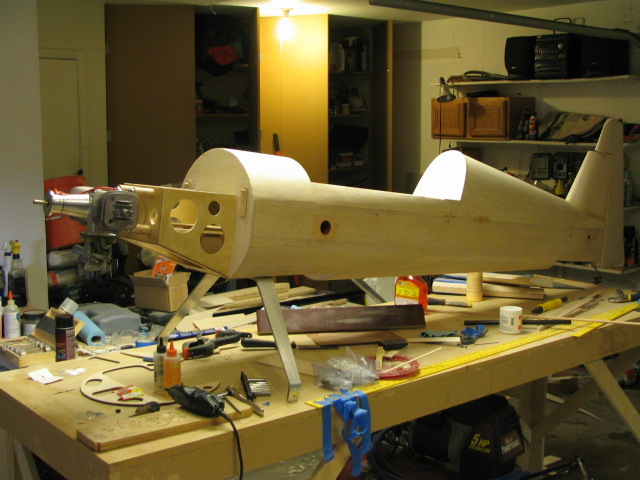

| Engine installed | .jpg) |

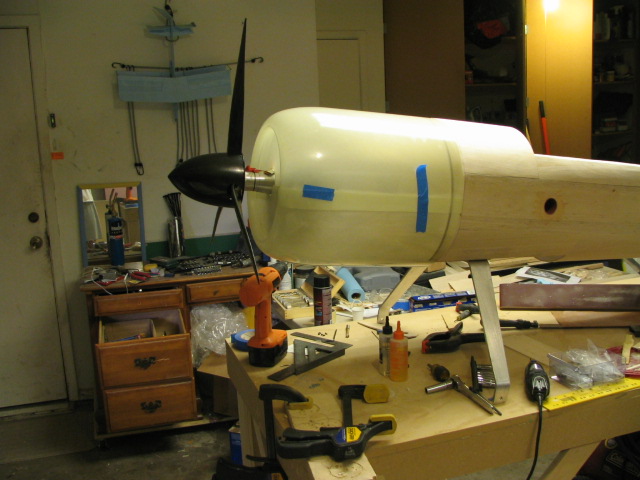

| Cowl taped in place | .jpg) |

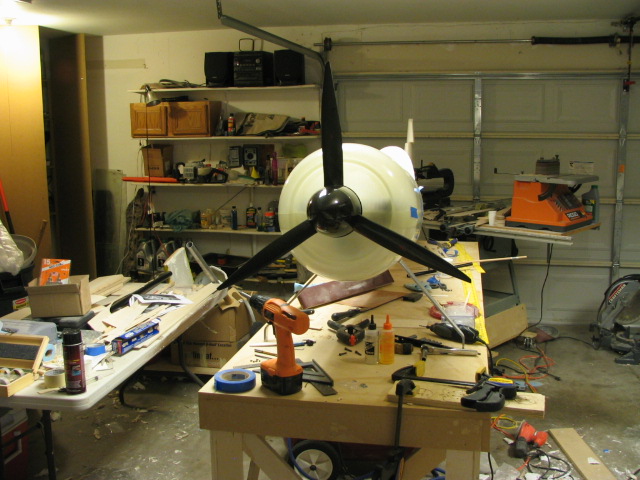

| Front view | .jpg) |

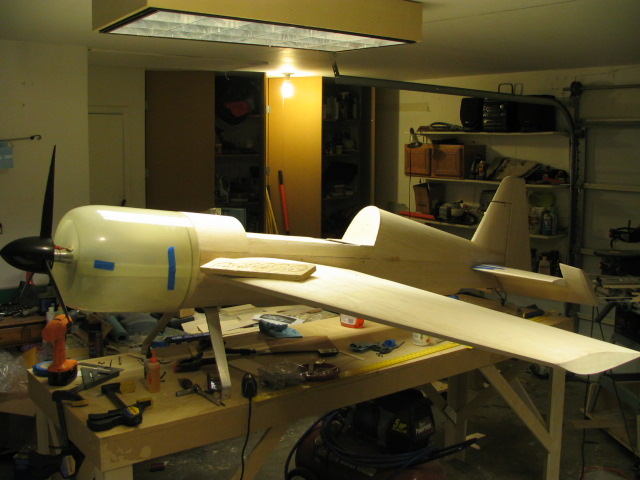

| Kinda starting to come together, still plenty of small stuff though | .jpg) |
